Off-Axis Response (Crossovers, Beaming, and Lobing Errors)

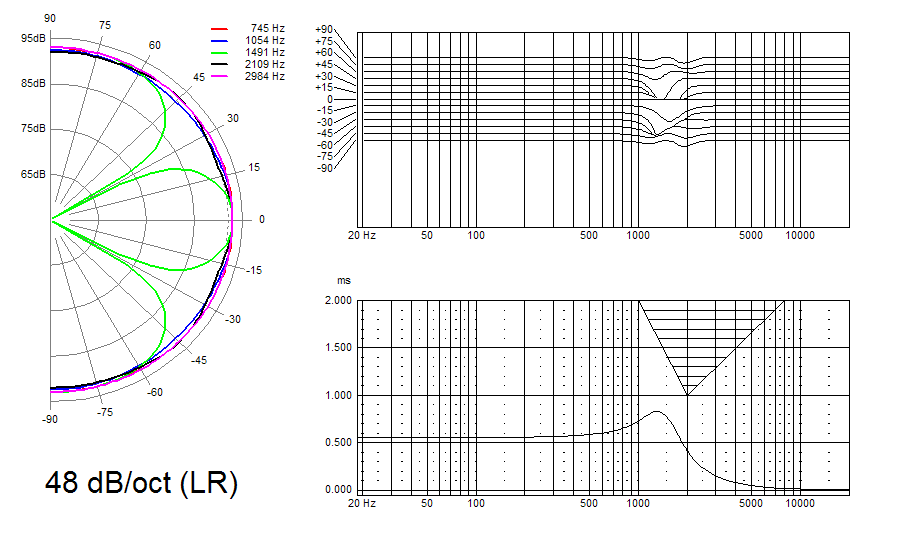

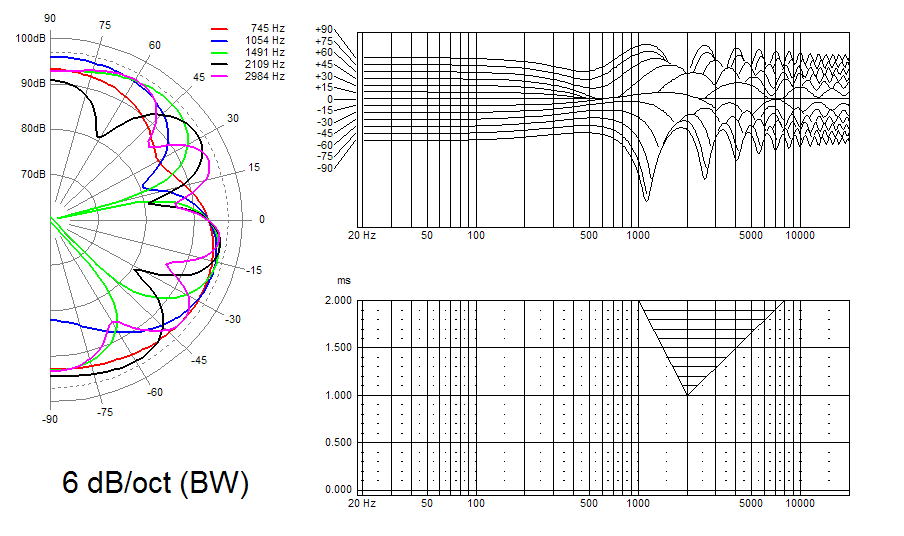

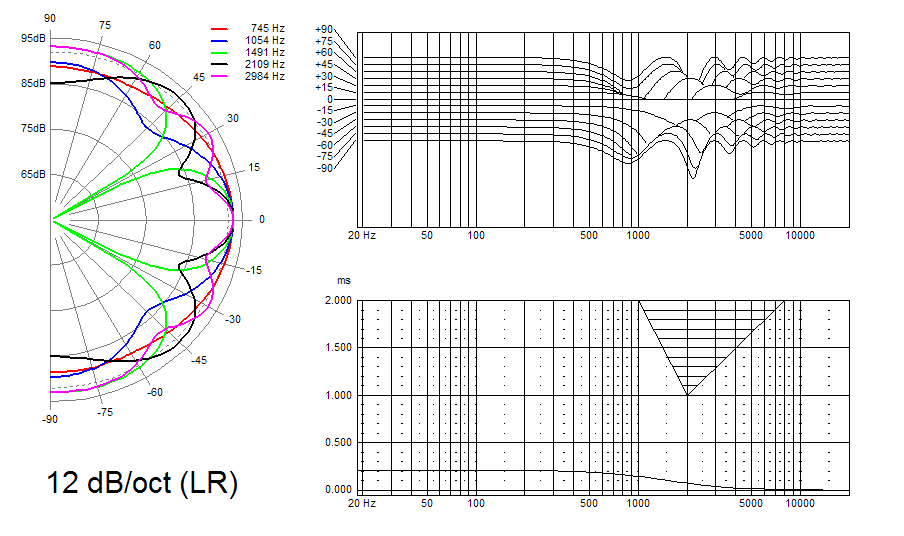

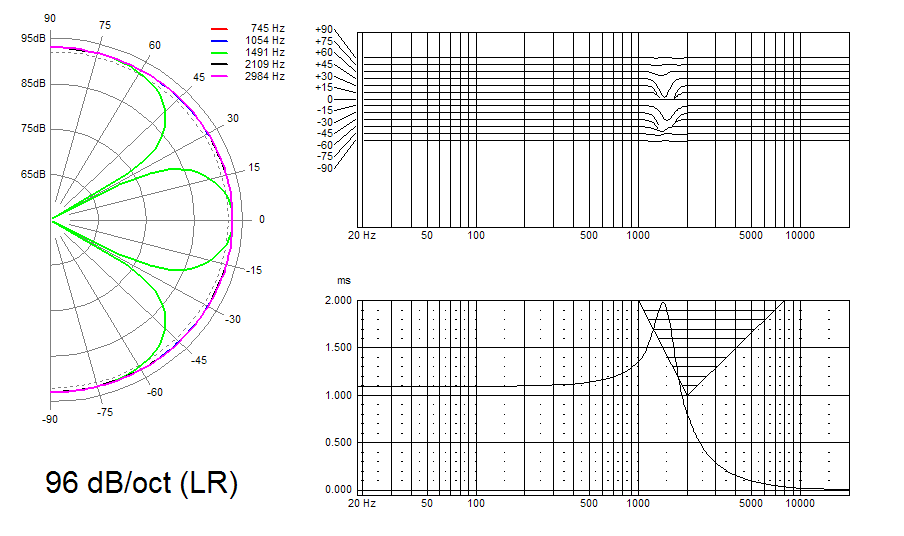

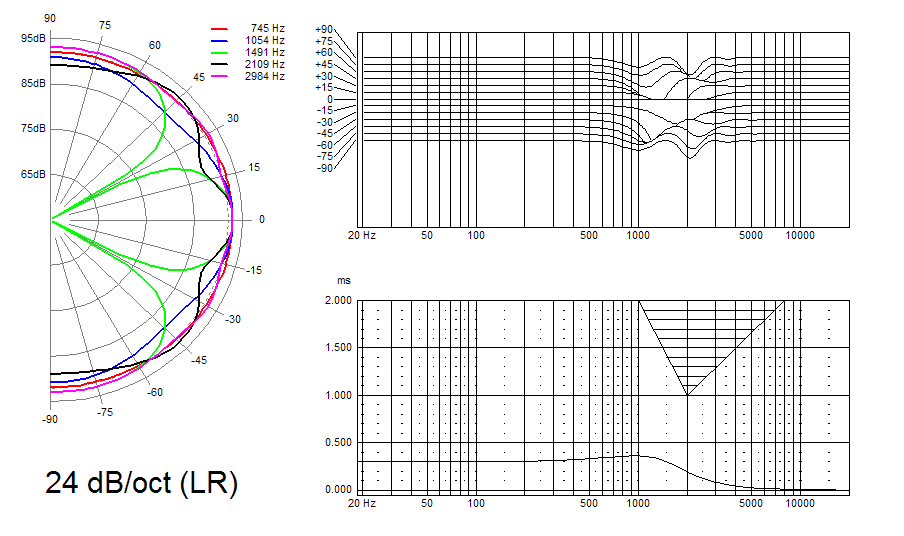

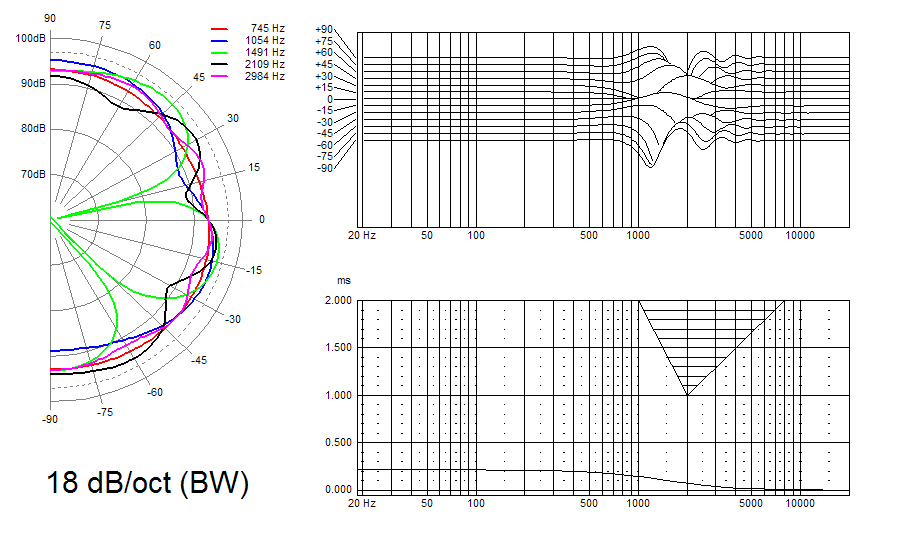

Vertical off-axis frequency response (polar and surface plot, left and top right) simulated for point sources crossed over at λ_c = ΔY for various slopes from 6 dB/oct to 96 dB/oct, keeping ΔY = 230 mm, and simulating group delay (bottom right)
